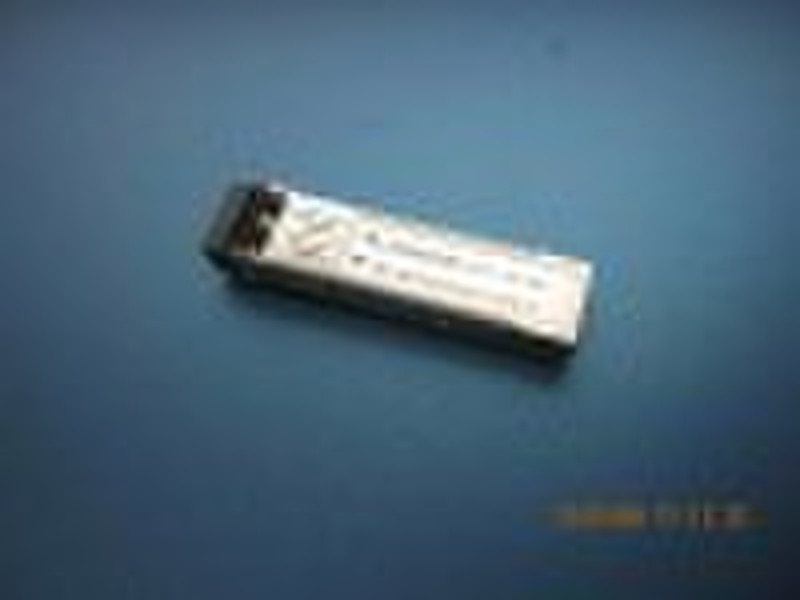

2.5Gbps DWDM SFP Optical Transceiver 120km reach

2.5Gbps DWDM SFP Optical Transceiver 120km Reach Features Wavelength selectable to C-band and L-band ITU-T grid wavelengths Suitable for use in 100GHz channel spacing DWDM systems DWDM SFP MSA Compliant Up to 2.667Gb/s data rate Cold Start up Wavelength Compliance Low Power Dissipation <1.3W Maximum -5ºC to 70ºC Operating Case Temperature Diagnostic Performance Monitoring of module temperature, supply voltages, laser bias current, transmit optical power, receive optical power, Laser temperature and TEC current Extended link budget with APD receiver technology OC48/STM-16 Long Reach 80km(1600 ps/nm), 120km(2400 ps/nm) Versions RoHS compliant and lead free Applications SFP Transceivers for DWDM SONET/ SDH Ethernet IEEE 802.3ae Fiber ChannelDescriptions It is designed for DWDM SONET/ SDH, Gigabit Ethernet and Fiber- Channel applications.The transceiver consists of two sections: The transmitter section incorporates a cooled DFB laser. And the receiver section consists of a APD photodiode integrated with a TIA. All modules satisfy class I laser safety requirements. BPI DWDM SFP transceiver provides an enhanced monitoring interface, which allows real-time access to device operating parameters such as transceiver temperature, laser bias current, transmitted optical power, received optical power and transceiver supply voltage, laser temperature and TEC current.Transmitter Specifications – OpticalParameterSymbolMinTypicalMaxUnitData Rate MultirateMra15524882667MbpsCenter Wavelength (SOL)lclc -25lclc +25pmCenter Wavelength (EOL)lclc -100lclc+100pmOptical Transmit PowerPo024dBmOptical Transmit Power (disabled)PTX_DISABLE---40dBmExtinction RatioER8.2-dBChannel Spacingf-100-GHzJitter GenerationTJP-P--70mUISpectral Width (-20dB)Dl20-0.10.3nmSide Mode Suppression RatioSMSR30--dBEye MaskCompliant with Bell core GR-253-CORE & ITU G.957 for SONET/SDH and with IEEE 802.3ae for Ethernet and Fibre Channel For more information, please contact us for complete PDF datasheet.
