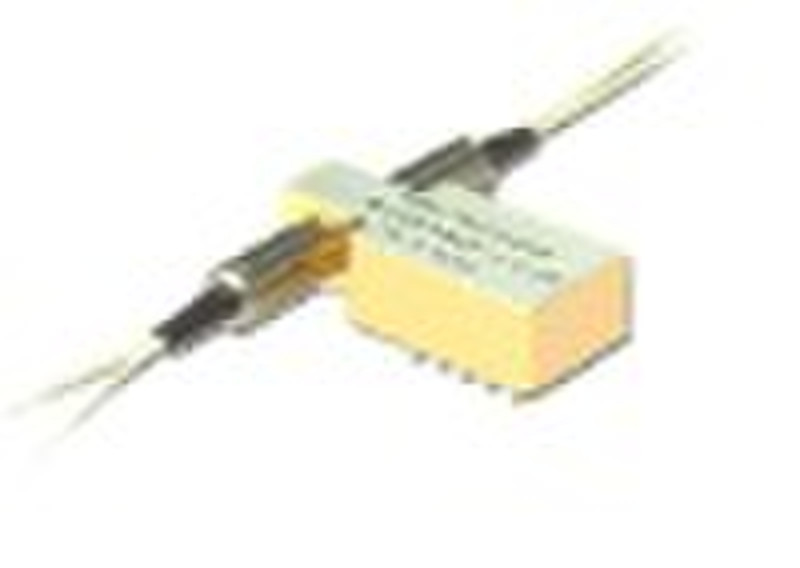

2x2 Cross-Bar Opto-Mechanical Switch

2x2 Cross-Bar Opto-Mechanical Switch Features: Compact size Built-in position sensor Low insertion loss Low PDL Applications: Optical switching System protection System monitoring Test & measurement Re-configurable OADM Specifications: Parameters Unit2×2CWavelength Range nm670 980(MM)1260 1620(SM)Testing Wavelength nm 670/785/850/980 1310/1490/1550/1625 Insertion Loss dBTyp:0.8 Max:1.2Typ:0.5 Max:0.8Return Loss dBSM≥50 MM≥30Cross-Talk dBSM≥55 MM≥35PDL dB≤0.05WDL dB≤0.25TDL dB≤0.25Repeatability dB≤±0.02Operating Voltage V3.0 or 5.0Durability (Life) cycles≥107Switching Time msBar→ Cross ≤ 3 Cross→ Bar ≤ 5Transmission Power mW≤500Operating Temperature -20+70Storage Temperature -40+85Weight g16Dimension mm(L)28.5×(W)12.5×(H)8.0 *. All the specifications are based on the devices without connector, and guaranteed overwavelength, polarization and temperature. **. Specifications are subject to change without notice.
