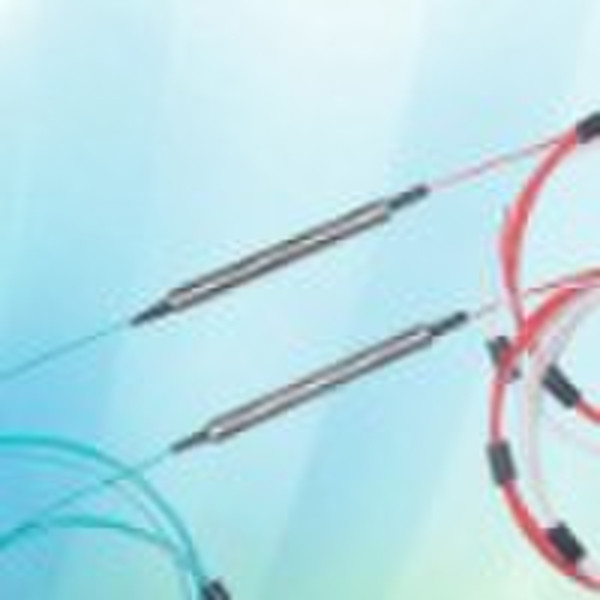

3-port Polarization Insensitive Fiber Optic Circul
Duchy Xu
Contact person
Basic Information
| Place of Origin | Shanghai China (Mainland) |
|---|---|
| Brand Name | BPI |
| Model Number | PIOC-3 |
3-port C&L Band Polarization InsensitiveFiber Optic Circulator FEATURES: Low Insertion Loss High Isolation Epoxy-free on Optical Path Excellent Environmental Stability APPLICATIONS: Fiber OpticAmplifier Fiber Optic Instrument WDM System Dispersion Compensation Light Routing SPECIFICATIONS: Parameter Unit ValuesCenter Wavelength nm1525 1610Operating Wavelength Range nm±30Insertion Loss dB Typ.:0.8 Max.:1.0Isolation dBTyp.:50 Min.:35Directivity dB> 50Return Loss dB> 50Return Loss dB> 50Polarization DependentLossdB< 0.15Polarization Mode Dispertion ps< 0.10Max. Optical Power (CW) mW500Max. Tensile Load N5Fiber Type -SMF-28eOperating Temperature °c-5 to +50Storage Temperature °c-40 to +85 Note: 1. Specifications do not include Connector's Loss For more information, please contact us for PDF datasheet.
Delivery terms and packaging
Packaging Detail: Carton Delivery Detail: within 30 days ARO
Port: FOB Shanghai, China
