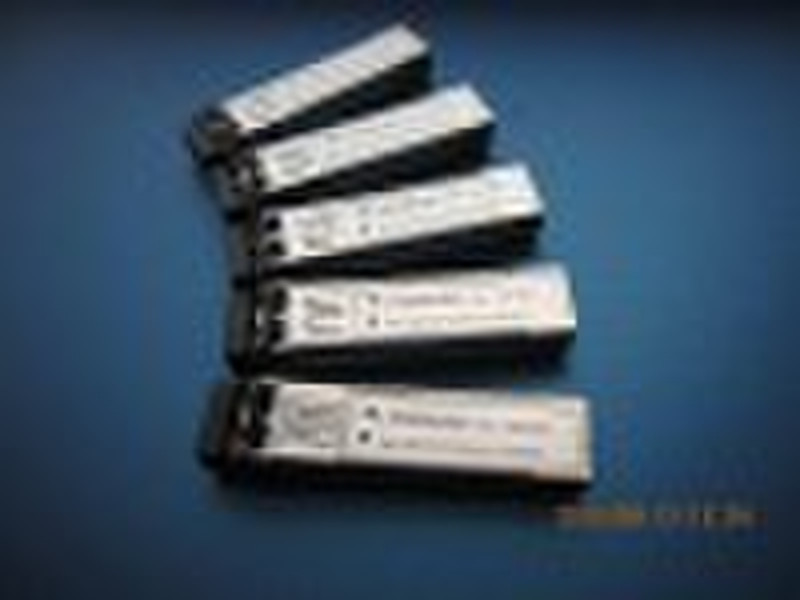

CWDM SFP Transceiver
Duchy Xu
Contact person
Basic Information
| Place of Origin | Shanghai China (Mainland) |
|---|---|
| Brand Name | BPI |
| Model Number | LTD155X |
CWDM SFP Transceiver, 1.25Gb/s, 80km Reach Applications: 1250Mb/s GBE equipment Rack to rack system interconnects Metro / Access Networks Switch to switch interfaces Hub interconnects Bus extenders Channel extenders Host adapter interconnects Mass storage system interconnects Telecom switches Router interconnects Features: LC Duplex optical interface 80 km reach 1250 Mb/s data rate +3.3 V power supply Low DC power consumption 2x10 SFP MSA compliant package Bail or pull latch option Hot swappable High performance 1470 to 1610 nm DFB laser High sensitivity PIN/TIA optical receiver Single Mode operation BER < 1X10-12 (27- 1 NRZ PRBS test pattern) Telcordia SONET OC-48/LR-1 compliant IEEE 802.3z 1000BASE-LX compliant Operating temperature range: Commercial: 0 to 70ºC Monitor and Control Functions Loss of Signal (Rx_LOS), LVTTL Tx Disable (Tx_DIS), LVTTL Tx Fault (Tx_FAULT), LVTTL 2-wire I2C data bus SFF-8472 Rev 9.3 MSA compliant Internally AC coupled and terminated LVPECL Rx and Tx data interface 100 Ohms differential (line to line) 50 Ohms single ended (line to ground) For more information, please contact us for PDF datasheet.
Delivery terms and packaging
Packaging Detail: Carton Delivery Detail: within 15 days ARO.
Port: FOB Shanghai, China
